The "Skeleton" Method: Why Modeling Ridge Lines and Spot Levels is the Key to Precision Engineering

When terrain models fail it’s not because of bad design — but because the structure wasn’t really built into the modelling in the first place. Here's how to change that.

THE SURFACE LIES

The model looked finished. The contours were clean, the 3D render was impressive enough to share with the client, and the surface appeared to flow naturally across the site. There was just one problem — the surfacea hid an un-buildable fold.

It's a scenario more landscape architects have lived through than will admit. A terrain mesh that passes every visual check but hides a physically impossible triangulation, cutting straight across a curb or retaining wall. If the surface is strictly built as in the modelling, water gathers exactly where it shouldn't. The construction crew on site is asking questions that the model cannot answer. The surface said one thing. The real world said another.

This is the quiet risk in how most terrain modeling gets done: the visual result comes first, and the structural logic is assumed but may hide logis errors that are discovered too late. The good news is that there's a better way to work — and it starts before you ever generate a surface.

WHY STARING WITH THE SURFACE IS THE WRONG MOVE

When a project lands on your desk, the instinct is to get geometry on screen quickly. You pull in the survey data, start sketching contours, cover them with a mesh, and before long you have something that looks like a terrain model. It feels productive.

But there's a fundamental problem buried in that workflow: you are building the skin before the bones exist.

A mesh generated without an structural framework is, at its core, a guess. The software triangulates between your points using its own internal logic — and that logic has no knowledge of where your site actually breaks. It may not know that there is a 120mm kerb between the car park and the footpath. It may not know that the retaining wall creates a hard boundary where two completely different drainage planes need to behave independently. So it does what algorithms do: it interpolates across those boundaries, creating geometry that looks smooth but functions incorrectly.

You're not engineering the terrain. You're drafting a representation of it and hoping the two agree.

The shift that changes everything is deceptively simple: treat the surface as a result, not a starting point.

MEET THE SKELETON — RIDGE LINES AND SPOT LEVELS

Before any surface is generated, the site needs a structural framework — a set of intelligent, engineering-aware elements that will define exactly how the terrain must behave. In LAND4 for Archicad, that framework is built from two foundational elements: Spot Levels and Ridge Lines.

SPOT LEVELS: THE SITE'S SINGLE SOURCE OF TRUTH

A Spot Level in LAND4 is not a label or an annotation. It is a live, intelligent 3D object that carries elevation data and understands its relationship to every other element in the model.

The most powerful expression of this is the Parent-Child relationship. When you establish a critical control point — say, the finished floor threshold of a building entrance — that Spot Level becomes a parent. A point downstream from it, the drain grate, the edge of the terrace, the kerb at the car park — can be linked as children. When the entrance threshold moves by 50mm during a design review, every connected point recalculates automatically. The gradients stay correct. You do not go back to the calculator.

This is what it means to work with a Single Source of Truth. Not a document. Not a spreadsheet. A live model where engineering logic is embedded in the geometry itself.

RIDGE LINES: WHERE THE TERRAIN MUST BREAK

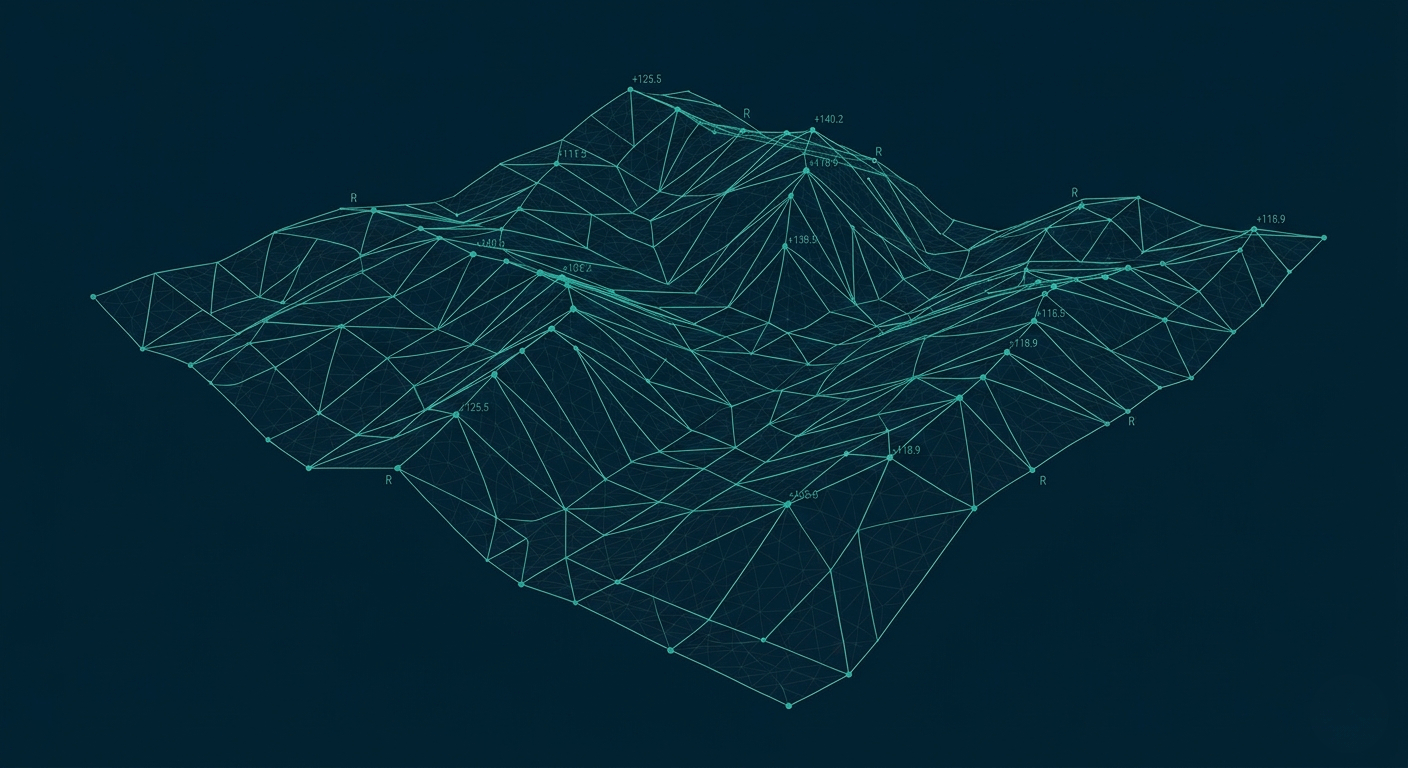

The triangulation problem is one of the most common sources of terrain errors in landscape BIM, and one of the least discussed. When software generates a mesh between a set of points, it has to decide how to connect them. Without guidance, it connects them in ways that are mathematically valid but physically wrong — drawing triangles straight across kerbs, walls, and drainage channels as if those boundaries don't exist.

Ridge Lines solve this directly. They are the skeletal elements placed along every hard edge in the design — kerb lines, retaining wall tops, path edges, surface transitions — and they enforce a forced triangulation. They tell the model: the terrain breaks here. Triangulate along this line, not across it.

The practical effect is significant. Hardscape edges become crisp and construction-grade. Drainage planes on either side of a wall behave independently. The software stops having to guess the correct meshing solution.

For curved elements — organic paths, planted mounds, softscape edges — Ridge Lines also offer arc segmentation control. You can dial in the precision of curved segments from 1 metre down to 1mm, giving you smooth, detailed geometry for complex forms without unnecessarily slowing down the model.

The Skeleton in Action

The clearest way to see the method work is through a real project scenario. Imagine a hardscaped civic plaza: a building entrance at the north end, a drainage channel running east, a retaining wall stepping down to a lower terrace, and a car park at the southern edge.

In a conventional workflow, you might start by sketching the general form and adding levels as you go. With the Skeleton Method, you begin differently.

Step 1 — Anchor the control points. Place Spot Levels at critical elevations: the building entrance threshold, the top and base of the retaining wall, the drain grate, the car park edge. These are your parents — the fixed engineering constraints that everything else must respect.

Step 2 — Define the breaks. Place Ridge Lines along every hard edge: the kerb between plaza and car park, the top and face of the retaining wall, the edge of the drainage channel. These lines are doing structural work. They are telling the model where one surface ends and another begins.

Step 3 — Apply the interpolation logic. Between your control points, apply the appropriate interpolation method. A two-point interpolation establishes a straight-line grade between the entrance and the drain. A Constant Gradient of 1.5% across the car park ensures consistent drainage to the grate.

Step 4 — Read the Fall Lines. As soon as the framework is in place, you can place Fall Lines on your plan — dynamic arrows showing the direction and percentage of slope across the surface. You can verify instantly that the plaza drains to the channel, the car park drains to the grate, and the terrace below the retaining wall is draining away from the building. You are not hoping the drainage is correct. You can see it.

The skeleton governs the terrain. Once it is right, the surface has no choice but to follow.

What the Skeleton Unlocks

Engineering the skeleton first does not constrain creative work. It enables it.

Creative freedom through confidence. When the engineering logic is embedded in the framework, design iteration becomes genuinely free. You can move a footpath 2 metres to the east, shift a planted mound, or raise the lower terrace by 100mm — and the gradients recalculate throughout the model automatically. There is no manual rework. The design can breathe.

Real-time cost visibility. A change to the skeleton can also update the Volumetric Stamp — a live Cut/Fill calculation that compares the existing ground surface against your proposed design. This means you can balance earthworks in real time. For project managers and clients, this is a fundamentally different kind of conversation: not "we'll know the earthwork volumes once the drawings are complete," but "here are the numbers, and here's what happens if we adjust the level by 50mm."

Procurement accuracy

The skeleton also changes how you calculate material quantities. LAND4 distinguishes between Horizontal Projected Area — the flat, 2D footprint — and Analytic Surface Area, which accounts for the actual 3D slope of the terrain. On a site with meaningful gradients, this difference can reach 10–15%. If you are ordering pavers, turf, or asphalt based on a flat plan measurement, you are consistently under-ordering. The skeleton makes the real surface area visible from day one.

Cleaner collaboration

When it is time to hand off to a civil engineer or surveyor, the LAND4 skeleton exports cleanly as LandXML — the industry standard for transferring precise terrain geometry between platforms. Because the Ridge Lines and triangulation are embedded in the export, the civil engineer's software receives the same engineering intent you designed. No data loss. No reconstruction from scratch. The skeleton travels with the data.

From Drafting to Engineering the Site

There is a real difference between an architect who draws a terrain and one who engineers it — and that difference is increasingly visible in the Nordic market. As BIM deliverables become a standard expectation in tenders across Sweden, Norway, and Finland, the quality of your terrain model is no longer just a technical detail. It is a competitive signal.

The Skeleton Method is not a feature or a shortcut. It is a way of thinking about what a terrain model is actually for. Start with the bones. Establish the engineering logic before the surface exists. Let the software manage the mathematics while you focus on what the site should be.

When the skeleton is right, everything that follows (the surface, the quantities, the drainage, the collaboration) has a solid foundation to build on.
